Measure dynamic limits and mark nominal timing in the NMG benchmark by Yuan-Xinyi · Pull Request #713 · DexForce/EmbodiChain

Yuan-Xinyi · 2026-09-28T14:37:50Z

Stack

Stack: main ← Replace external TOPPRA with differentiable CPU/CUDA retiming #724 ← Measure dynamic limits and mark nominal timing in the NMG benchmark #713 ← Retime NMG rollouts under joint velocity and acceleration limits #714 ← Pair a nominal and a retimed NMG arm in the benchmark #715
Base: feat/differentiable-toppra (Replace external TOPPRA with differentiable CPU/CUDA retiming #724)
Depends on: Replace external TOPPRA with differentiable CPU/CUDA retiming #724. This layer does not use it directly; it sits here so Retime NMG rollouts under joint velocity and acceleration limits #714 can retime with Replace external TOPPRA with differentiable CPU/CUDA retiming #724's backend. Merge bottom-up.
Followed by: Retime NMG rollouts under joint velocity and acceleration limits #714

Description

This PR implements item 1 of #684: measure joint velocity, acceleration and jerk in the motion-generation benchmark, and mark a planner whose reported timing is nominal rather than solved.

The benchmark validated joint positions but never their derivatives, so the dynamic_limits_satisfied_when_applicable term of motion_valid in BENCHMARK_DESIGN.md section 4.2 had no way to evaluate. That matters most for NMG, which integrates action * action_scale per step and reports a fixed nominal dt: 0.2 rad per 0.01 s is 20 rad/s against 2.62 rad/s for the slowest FR3 joint, so its reported derivatives sit on a time axis no arm can execute.

What changed:

Derivatives are recomputed, not read. Velocity, acceleration and jerk come from positions and dt through compute.trajectory.differentiate_positions, rather than from whichever derivatives a planner chose to report. Section 4.2 asks for exactly this, and it keeps a comparison from turning into a comparison of derivative conventions. Repeated three-point differencing damps the higher derivatives, equally for every candidate.
Per-derivative reporting. Peak magnitude, limit utilization and violation for each of the three, plus dynamic_limits_satisfied, which is conjoined into motion_valid and produces a dynamic_limit_violation failure code.
Not-applicable stays distinct from satisfied, end to end. Acceleration and jerk limits have no asset source, so an unset limit yields None from the metric, and _case_macro_rate_optional reports N/A rather than a zero violation rate. Coercing None to False would have reported an unconfigured limit as a clean result.
A position change across a zero interval is an unbounded velocity violation, reported as such instead of letting the differentiator reject the trajectory and fail the whole trial.
PlannerMetadata.native_timing. PlanResult requires dt whenever it carries positions, so a nominal constant cannot simply be withheld. The NMG adapter declares native_timing=False and its trajectory_duration_s aggregates to None, which keeps a nominal duration from being compared against a solved one.
A nominal clock does not decide validity. Peaks, utilizations and violations always describe the timing a planner reported, but dynamic_limits_satisfied — the verdict that feeds motion_valid — additionally requires that timing to be solved. A planner reporting a nominal constant has not claimed an executable duration, so it is neither credited nor failed on a clock it never solved; its diagnostics are still published, which is what makes a nominal and a retimed run of one policy comparable.
Trailing hold padding is trimmed before differentiating. A batched planner pads short rows by repeating the final pose at a zero interval; the first differentiation accepts that hold but steps the velocity across zero elapsed time, and the next stage rejects it outright, so a legitimately padded batch failed evaluation. This is the exact shape _assemble_batched_results produces.
The new metrics are rendered in report.md and summarized over every measured outcome rather than the motion-valid subset. Exceeding a limit can make an outcome invalid, so restricting the population would drop exactly the trajectories with the largest peaks.
Suites carry the published FR3 joint-space limits, 10 rad/s^2 and 5000 rad/s^3 uniformly across all seven joints, with the specification cited inline. Velocity limits continue to resolve from the asset through robot.get_qvel_limits(); the FR3 URDF matches the published table exactly.

Defaults are unchanged: a suite that sets no acceleration or jerk limit reports N/A and its motion_valid is unaffected.

Dependencies: none.

Refs #684

Type of change

Enhancement (non-breaking change which improves an existing functionality)

Measured evidence

Real NMG checkpoint (swa3.onnx, K=5, fingerprint 485fe689…7703b, accepted by the layout validator unmodified) on Franka FR3, smoke suite, 9 free-space cases at W=1/3/5, 3 measured trials each, CUDA.

One unretimed rollout, peak per joint against each joint's own limit:

joint	1	2	3	4	5	6	7
peak \|q̇\| (rad/s)	6.74	3.03	3.09	5.22	1.75	2.27	7.33
FR3 velocity limit	2.62	2.62	2.62	2.62	5.26	4.18	5.26
velocity utilization	2.57	1.16	1.18	1.99	0.33	0.54	1.39
peak \|q̈\| (rad/s²)	329	109	84	269	94	176	692
acceleration utilization	32.9	10.9	8.4	26.9	9.4	17.6	69.2

5 of 7 joints exceed their velocity limit, worst 2.6×; 7 of 7 exceed the acceleration limit, worst 69×. Across the 9 cases the violation rate is 100% on velocity, acceleration and jerk, with utilization 1.21–5.29 and 52–122.

motion_valid stays true for these rows, which is the nominal-timing rule working: a clock the planner never solved publishes diagnostics but does not decide validity. trajectory_duration_s is N/A for the same reason.

The run found two defects this PR had to fix

The velocity check was silently vacuous. The first run reported 0% velocity violations with utilizations around 4e-38. Working back, 13.85 / 4.07e-38 = 3.40e38 — exactly the float32 maximum, identical on every row. Confirmed directly:

qvel_limits = [3.4028234663852886e+38] * 7
qf_limits   = [100000.0] * 7

The simulator does not carry the asset's limits; the URDF declares 2.62–5.26 rad/s and 12–87 Nm. An earlier check that this resolved correctly read the URDF file rather than the runtime value and was wrong. Fixed in 033af89b: a placeholder-magnitude asset limit reads N/A rather than satisfied, protocol.joint_velocity_limit_rad_s lets a suite state what the asset lacks, and the suites carry the published FR3 values.

trajectory_duration_s was set only by the atomic-task scenario, so the duration column was N/A for every free-space row regardless of timing. Also fixed there.

Caveat on the estimator

Peaks are recomputed by repeated three-point differencing, which damps them. Against TOPPRA, whose analytic accelerations are available for comparison, this estimate reads 0.5–3.6% below the analytic value — on six trials TOPPRA's analytic peak exceeded its 10 rad/s² constraint (10.08–10.45) while this estimate read 9.99–10.08. The metric therefore understates an overshoot rather than inventing one. It damps equally for every candidate, so comparisons stay fair, but reported peaks are lower bounds.

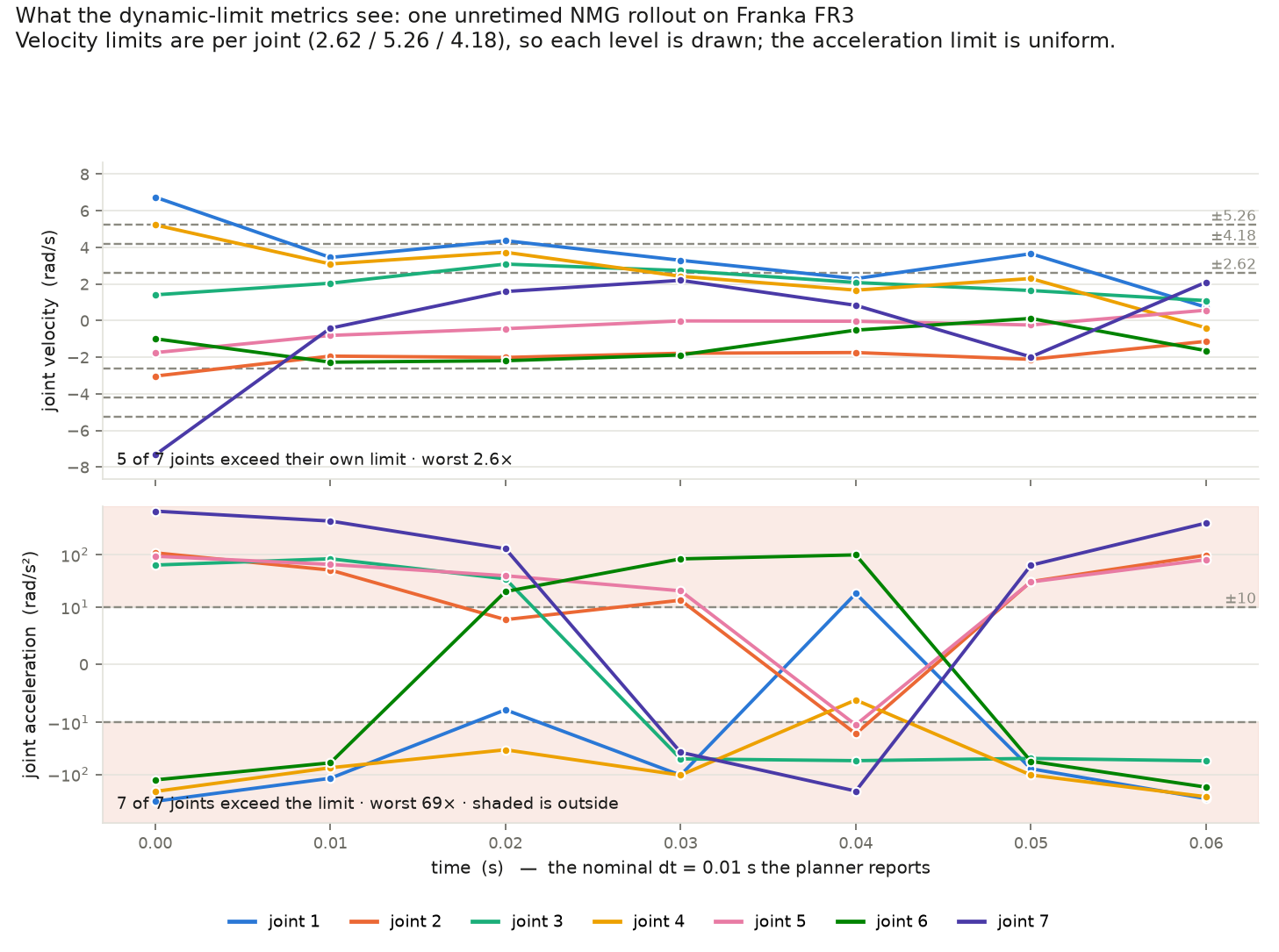

One unretimed NMG rollout on Franka FR3: joint velocity and acceleration for all seven joints against the published limits. Velocity limits are per joint, so each level is drawn; the acceleration limit is uniform and its outside is shaded.

Validation

Proportional to the change, which is confined to the benchmark package and its tests:

python -m pytest tests/benchmark/motion_generation/ — 121 passed, 1 skipped.
black . — clean.
python docs/scripts/check_api_docs.py — 2310/2310 exports documented. No public API changed; scripts/benchmark/ is not part of the embodichain package.
context.py affected --base origin/main --explain — no affected topics. BENCHMARK_DESIGN.md is not a registered context topic but is updated here, since section 2.2 listed these checks as missing and section 2.1 described a dt treatment this PR makes explicit.

Three existing tests had to be adjusted rather than changed in meaning. Their shared fixture moves 0.1 rad in 0.025 s, which is 4 rad/s and over a realistic FR3 limit, so the _MetricRobot stub keeps a permissive velocity limit by default and the new dynamic-limit tests set a realistic one explicitly. A test double should not couple unrelated dimensions.

Not included here: nothing bounds or retimes anything yet. This PR only measures. #714 adds retiming and #715 pairs the two arms.

The second commit addresses automated review on this PR; see the comment thread for how each finding was handled.

Checklist

I have run the black . command to format the code base.
I reviewed affected documentation and agent context, updated it where needed, or explained why no update was needed.
Public API changes are reflected in the API docs (python docs/scripts/check_api_docs.py), if applicable
I have added tests that prove my fix is effective or that my feature works
Dependencies have been updated, if applicable. No dependency changes were required.
